Am Fam Physician. 2014;90(12):843-850

Patient information: See related handout on developmental dysplasia of the hip, written by the authors of this article.

Author disclosure: No relevant financial affiliations.

Developmental dysplasia of the hip is a common musculoskeletal condition in newborns. Infants with developmental dysplasia of the hip, whether treated or untreated, have a higher incidence of early-onset hip osteoarthritis in adulthood. Evidence to support universal screening by physical examination or ultrasonography is limited and often conflicting. The U.S. Preventive Services Task Force found insufficient evidence that screening for developmental dysplasia of the hip prevents adverse outcomes. Physical examination screening is recommended by the American Academy of Pediatrics and the Pediatric Orthopaedic Society of North America. These organizations recommend use of the Ortolani and Barlow maneuvers to screen infants up to three months of age. Several recent studies support starting assessment for limited hip abduction at eight weeks of age, which is the most sensitive test for developmental dysplasia of the hip from this age on. Infants with overtly dislocated or dislocatable hips should be referred to an orthopedist on a priority basis at the time of diagnosis. Infants with equivocal hip examination findings at birth can be reexamined in two weeks. If there is subluxation or dislocation at the follow-up examination, referral should be made at that time. If the examination findings are still equivocal, the infant can undergo ultrasonography of the hips or be reexamined every few weeks through the first six weeks of life. Although equivocal findings commonly resolve spontaneously, infants with persistent equivocal findings of developmental dysplasia of the hip longer than six weeks should be evaluated by an orthopedist. Treatment generally involves flexion-abduction splinting. The benefits of treatment are unclear, and there are risks to treatment, most notably an increased occurrence of avascular necrosis of the femoral head.

Screening for developmental dysplasia of the hip (DDH) has been a component of neonatal medical care for more than 70 years.1,2 This article reviews current evidence and opinions regarding screening for DDH, with a focus on universal screening in well newborns and a discussion of the current approach to treatment of DDH.

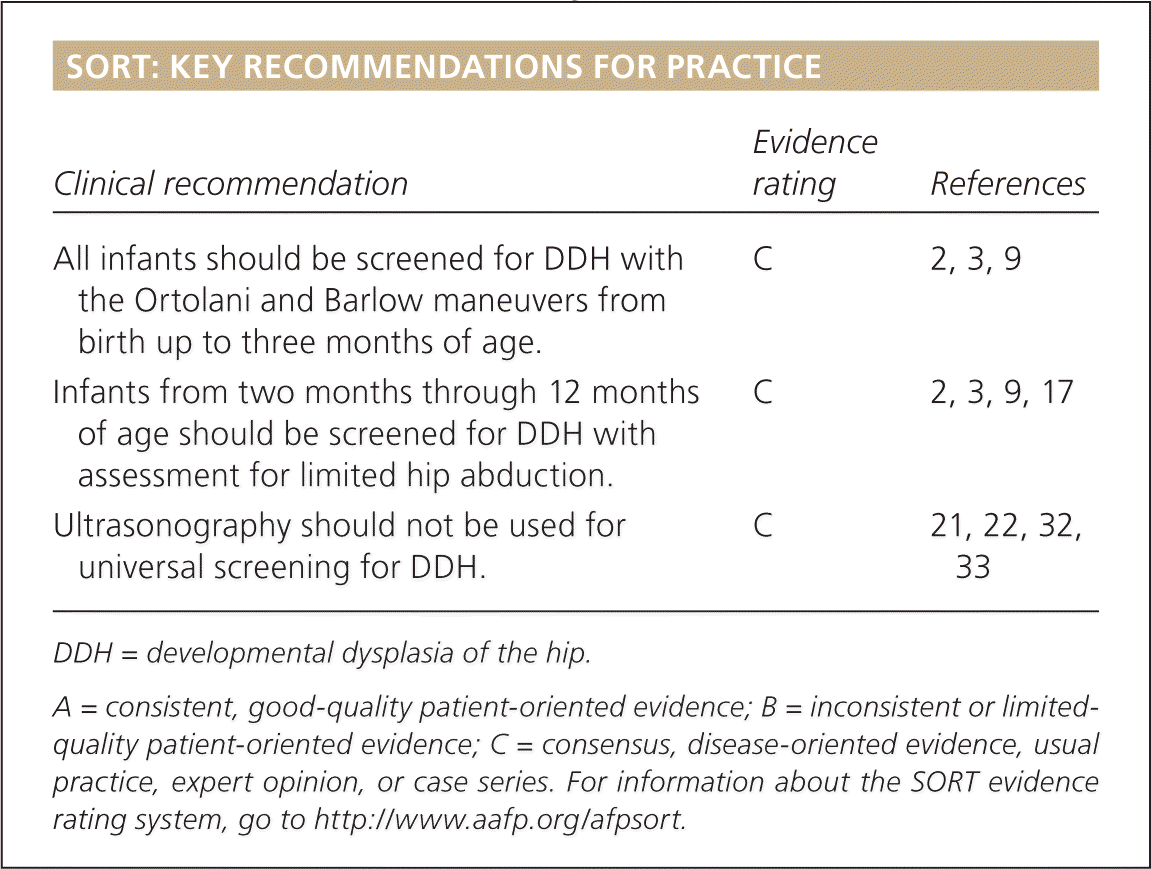

Clinical recommendationEvidence ratingReferences
All infants should be screened for DDH with the Ortolani and Barlow maneuvers from birth up to three months of age.C2, 3, 9
Infants from two months through 12 months of age should be screened for DDH with assessment for limited hip abduction.C2, 3, 9, 17
Ultrasonography should not be used for universal screening for DDH.C21, 22, 32, 33

DDH denotes an abnormality of the acetabulum or femoral head and their congruence that presents at birth or in infancy. It is more inclusive than the previous term “congenital hip dislocation,” because it includes abnormalities other than overt dislocation.

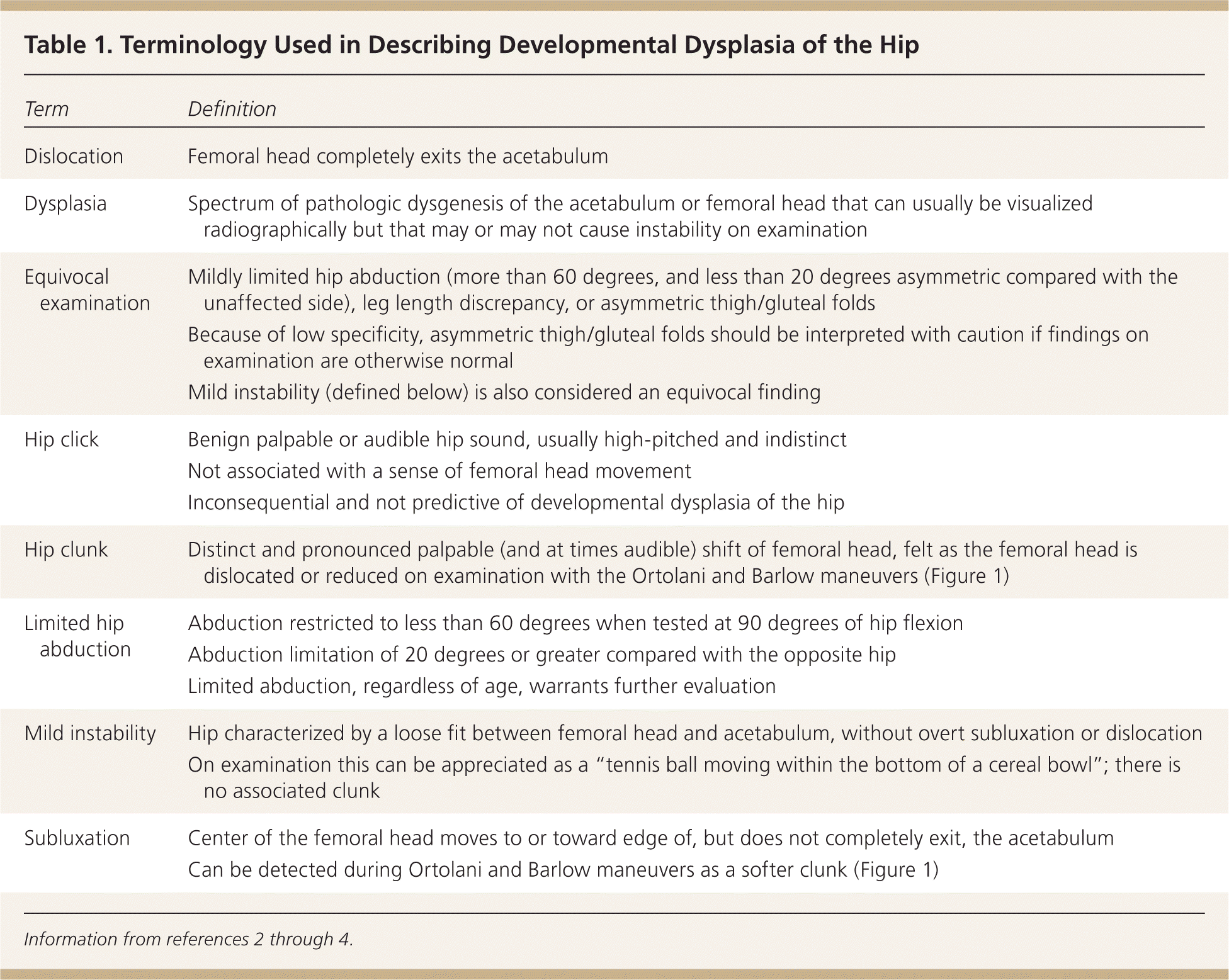

DDH terminology is sometimes confusing (Table 1).24 A hip clunk is a significant finding. A hip click, on the other hand, is thought to be caused by benign soft-tissue movement. It has been shown in multiple studies to be unrelated to DDH and does not require further evaluation.57 Sometimes examination findings include a mild sensation of instability or laxity without frank subluxation or dislocation. This finding is often called “mild instability”; this term will be used throughout this article.24

  • Femoral head completely exits the acetabulum

  • Spectrum of pathologic dysgenesis of the acetabulum or femoral head that can usually be visualized radiographically but that may or may not cause instability on examination

Equivocal examination
  • Mildly limited hip abduction (more than 60 degrees, and less than 20 degrees asymmetric compared with the unaffected side), leg length discrepancy, or asymmetric thigh/gluteal folds

    Because of low specificity, asymmetric thigh/gluteal folds should be interpreted with caution if findings on examination are otherwise normal

    Mild instability (defined below) is also considered an equivocal finding

Hip click
  • Benign palpable or audible hip sound, usually high-pitched and indistinct

    Not associated with a sense of femoral head movement

    Inconsequential and not predictive of developmental dysplasia of the hip

Hip clunk
  • Distinct and pronounced palpable (and at times audible) shift of femoral head, felt as the femoral head is dislocated or reduced on examination with the Ortolani and Barlow maneuvers (Figure 1)

Limited hip abduction
  • Abduction restricted to less than 60 degrees when tested at 90 degrees of hip flexion

    Abduction limitation of 20 degrees or greater compared with the opposite hip

    Limited abduction, regardless of age, warrants further evaluation

Mild instability
  • Hip characterized by a loose fit between femoral head and acetabulum, without overt subluxation or dislocation

    On examination this can be appreciated as a “tennis ball moving within the bottom of a cereal bowl”; there is no associated clunk

  • Center of the femoral head moves to or toward edge of, but does not completely exit, the acetabulum

    Can be detected during Ortolani and Barlow maneuvers as a softer clunk (Figure 1)

Incidence and Risk Factors

Developmental dysplasia of the hip is a common musculoskeletal condition in newborns. The reported prevalence of hip instability on physical examination at birth ranges from 1.6 to 28.5 per 1,000 infants, but the prevalence of persistent abnormalities after the first few days of life, as reported in a meta-analysis of several studies in American and European populations, is 1.3 per 1,000.2 Studies using ultrasonography have found that about 5% of newborns have some radiographic abnormality of the hip, although many of these abnormalities are undetectable on physical examination.8 Rarely, DDH may develop or worsen after the neonatal period.9 DDH is associated with early-onset osteoarthritis of the hip in adulthood.

Some of the strongest risk factors for DDH are breech position, female sex, and first gestation (with odds ratios in one study of 6.0, 4.3, and 2.7, respectively).10 The incidence of clinically unstable hips at birth among infants in the breech position may exceed 10%.11 Other risk factors and associated findings include family history of DDH, oligohydramnios, large birth weight for gestational age, metatarsus adductus, and torticollis, among others. Why these risk factors are associated with DDH is not well understood, although limited intrauterine space and fetal position may be involved.2

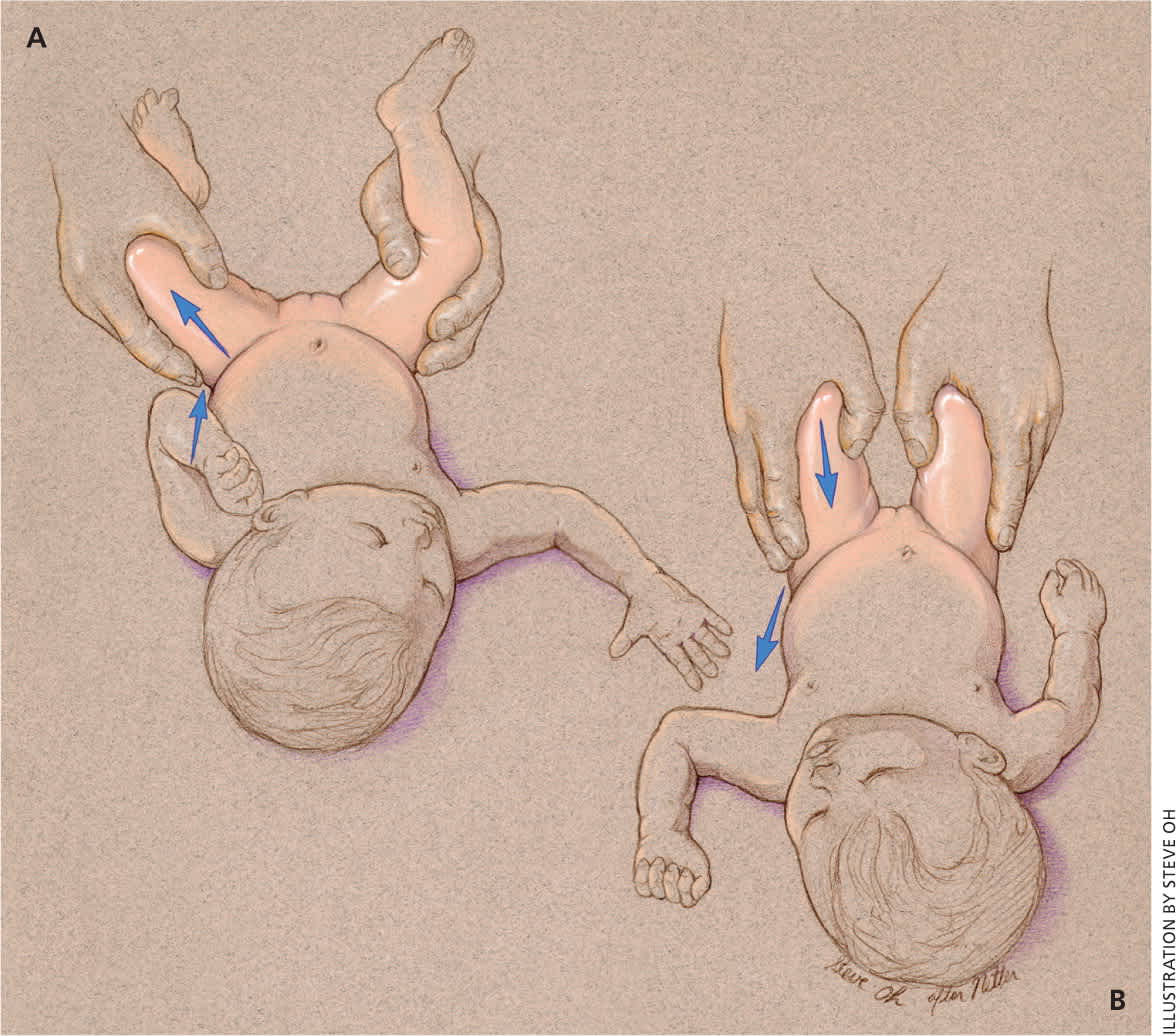

The Ortolani (reducing a dislocated hip) and Barlow (dislocating an unstable hip) maneuvers are the physical examination tests most commonly performed for detection of DDH in early infancy (Figure 112). By two to three months of age, the Barlow and Ortolani maneuvers are less useful and assessment for limited hip abduction becomes the preferred examination method. Ultrasonography has also been used for DDH screening. Several ultrasound methods have been described, but in general, the evaluation involves a coronal view and a transverse view with the hip in flexion.


A distinct clunk elicited on the Barlow or Ortolani maneuver represents a positive result.1,13 These tests decrease in accuracy within a few weeks of birth as ligamentous hyperlaxity resolves.2,3,13

Assessment of hip abduction is performed with the infant supine, hips flexed to 90 degrees, and pelvis stabilized. A single hip is then abducted, with subsequent comparison to the contralateral side.2,4 The range of what is considered abnormal hip abduction varies from less than 45 degrees to less than 60 degrees in different studies, with many recommendations suggesting that physicians further evaluate infants with hip abduction less than 60 degrees using hip ultrasonography.1416 A difference in abduction greater than 20 degrees between sides should also be further investigated. Multiple studies have found this 20-degree difference to be more sensitive than a specific degree of limited abduction.14,16,17 It should be noted that bilateral DDH occurs in up to 20% of cases; therefore, there may be no difference between sides.4

On ultrasonography, morphology of the femoral head and acetabulum is noted, including any displacement that may be present with or without stress maneuvers.18 Abnormalities are commonly graded with the Graf system, which rates the degree of hip dysplasia from grade I (no abnormality) to grade IV (overt dislocation).19 Accuracy of ultrasonography depends on an experienced sonographer and interpreting radiologist.20

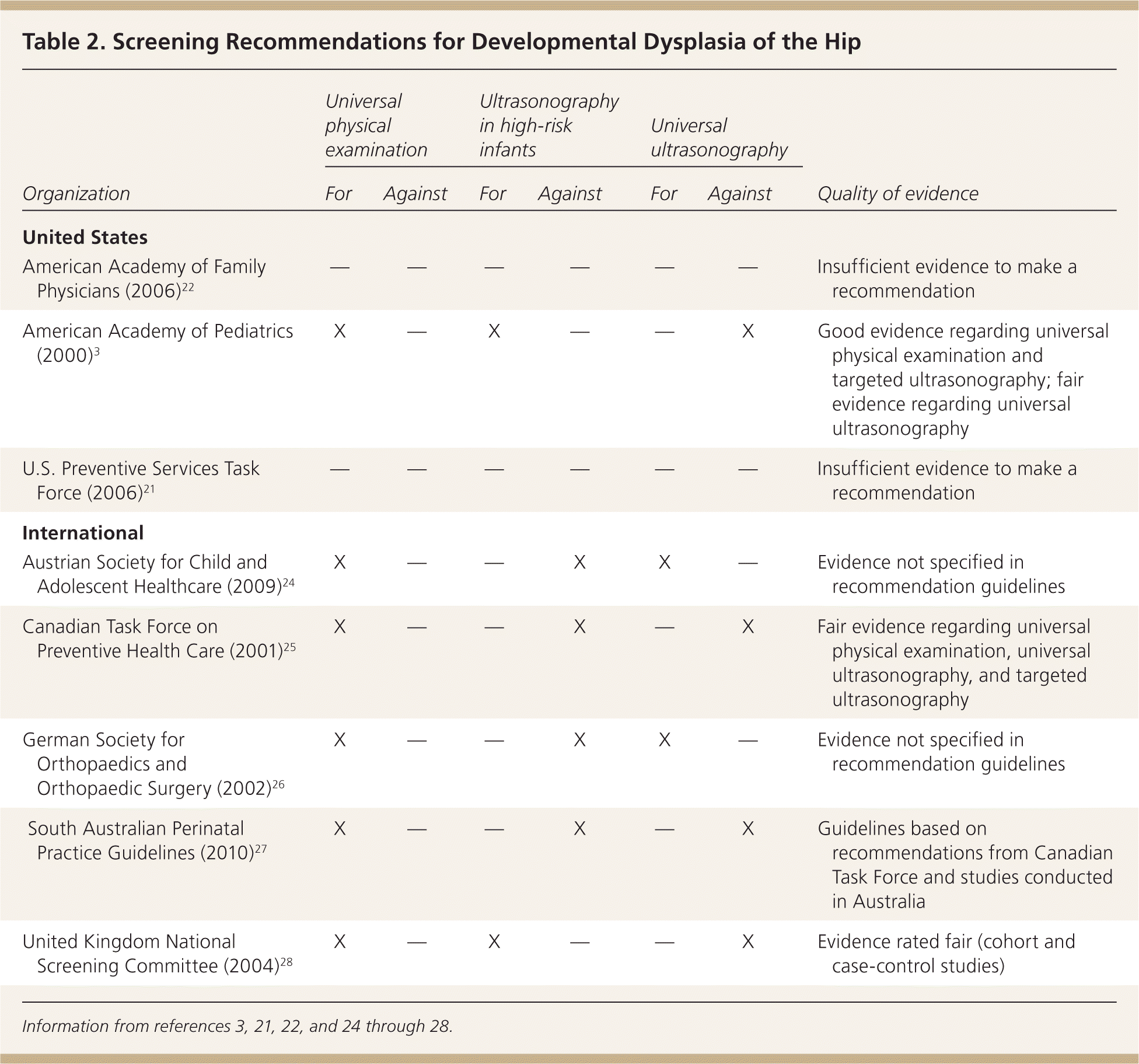

The U.S. Preventive Services Task Force (USPSTF) and the American Academy of Family Physicians found insufficient evidence to recommend routine screening for DDH as a means to prevent adverse outcomes.21,22 Other U.S. expert groups, including the American Academy of Pediatrics (AAP) and the Pediatric Orthopaedic Society of North America, recommend screening all newborns for DDH with physical examination maneuvers, and targeted screening ultrasonography for infants with multiple risk factors, regardless of physical examination findings.3,9,23 The AAP also recommends performing “a focused physical examination of the hips” at routine health care visits until the child is older than 12 months.3 There are differing recommendations internationally (Table 23,21,22,2428); in particular, in some countries including Austria and Germany, universal DDH screening is performed with ultrasonography.2428

OrganizationUniversal physical examinationUltrasonography in high-risk infantsUniversal ultrasonographyQuality of evidence
United States
American Academy of Family Physicians (2006)22 Insufficient evidence to make a recommendation
American Academy of Pediatrics (2000)3 XXXGood evidence regarding universal physical examination and targeted ultrasonography; fair evidence regarding universal ultrasonography
U.S. Preventive Services Task Force (2006)21 Insufficient evidence to make a recommendation
Austrian Society for Child and Adolescent Healthcare (2009)24 XXXEvidence not specified in recommendation guidelines
Canadian Task Force on Preventive Health Care (2001)25 XXXFair evidence regarding universal physical examination, universal ultrasonography, and targeted ultrasonography
German Society for Orthopaedics and Orthopaedic Surgery (2002)26 XXXEvidence not specified in recommendation guidelines
South Australian Perinatal Practice Guidelines (2010)27 XXXGuidelines based on recommendations from Canadian Task Force and studies conducted in Australia
United Kingdom National Screening Committee (2004)28 XXXEvidence rated fair (cohort and case-control studies)


There are few data on the accuracy and interexaminer consistency of the Ortolani and Barlow maneuvers, although the training and experience of the physician performing them have been shown to influence their accuracy.29 Similarly, although limited hip abduction is recommended as the best assessment method after two months of age, evidence to support this recommendation is mixed.2,3,9,14,16,17,30 Performing screening ultrasonography finds more abnormalities, thus leading to increased diagnosis of DDH.31,32


A USPSTF review of seven studies that measured the accuracy of the Ortolani and Barlow maneuvers using ultrasonography as the reference standard found wide-ranging sensitivities.33 Even when abnormalities are found with these maneuvers, more than one-half of patients will be determined to have normal hips within one month on repeat examination or ultrasonography.29

One study that included nearly 700 infants older than three months found limited hip abduction to have sensitivity of 69% and specificity of 54% compared with ultrasonography.16 Another study on unilateral limited hip abduction in infants older than eight weeks demonstrated 78% sensitivity and 93% specificity vs. an ultrasound standard.17 Regarding universal ultrasonography, one study showed that screening led to improved clinical outcomes and cost savings.31 However, in a Cochrane review, universal ultrasonography (vs. clinical examination alone) resulted in a higher rate of detected DDH and a higher rate of treatment, but it did not reduce the rate of missed (late-diagnosed) DDH or the need for surgery.32 This is likely because screening ultrasonography in infants detects many mild abnormalities of the hip joint, nearly all of which resolve spontaneously.3 Ultrasonography should not be used for universal screening.21,22,33


Despite inconclusive evidence, the current standard of care is based on a recommendation from the AAP to perform physical examination screening.3


The USPSTF gives DDH screening, whether by physical examination or ultrasonography, an “I” rating (insufficient evidence to recommend for or against screening).21 The American Academy of Family Physicians endorses this “I” rating.22

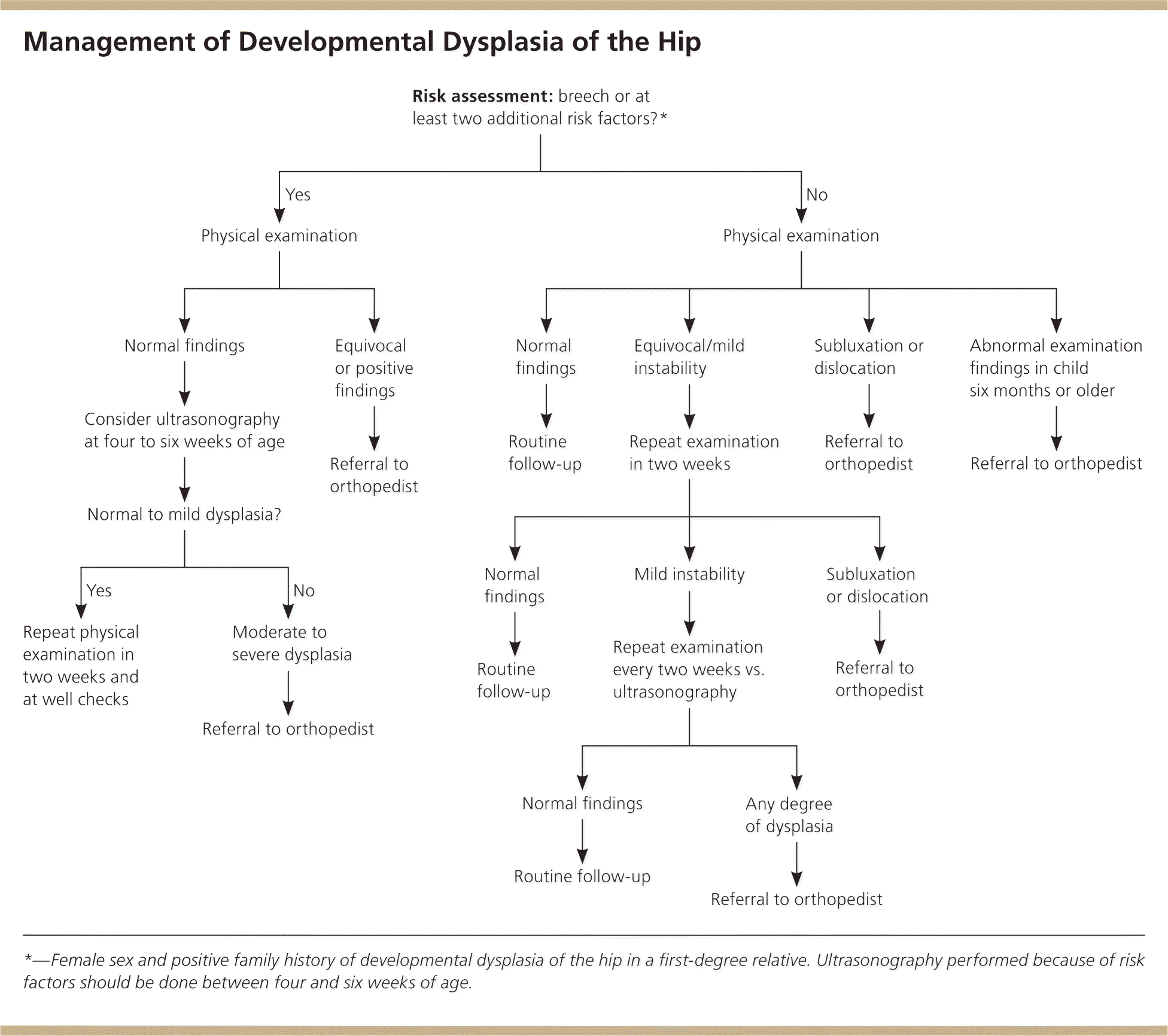

Infants with unequivocally abnormal results on initial newborn examination (i.e., a finding of subluxation or dislocation) should be referred to an orthopedist who is experienced in diagnosis and management of DDH. This referral should occur on a priority basis at the time of diagnosis. If findings on physical examination are equivocal (e.g., a finding of mild instability [Table 124 ]), a repeat examination should be performed in two weeks.2,3,9 If at that time the examination continues to show mild instability, ultrasonography or additional biweekly follow-up examinations for up to one additional month, through six weeks of life, can be considered. There is a limited role for other imaging modalities in the initial diagnosis of DDH. Figure 2 outlines the approach to evaluating an infant who has physical examination findings positive for DDH.3,9,32,34 As mentioned previously, most studies indicate DDH resolves spontaneously over a period of weeks.


Although controversial as a screening tool, ultrasonography has good negative predictive value (as high as 90%) for disproving a diagnosis of DDH.3537 Plain radiography is inappropriate in infants younger than six months because the neonatal hip is primarily cartilaginous and because of radiation exposure. It is, however, sometimes used as an adjunct following treatment in an older child.2 Although not used for initial diagnosis, computed tomography and magnetic resonance imaging can be used to follow treatment if an infant is in a cast, making ultrasonography ineffective.38



Infants younger than six months with overtly dislocated or dislocatable hips are usually treated with flexion-abduction splinting using a device such as a Pavlik harness3,9 (Figure 3). With mild instability, as noted previously, one recommended approach is watchful waiting with bimonthly examination for up to six weeks. If mild instability persists beyond six weeks, the patient should be referred to an orthopedist for splinting. In infants whose hip joint remains unstable after several weeks of flexion-abduction splinting or in those initially diagnosed with unstable hip dysplasia at six months of age or later, the usual treatment is closed reduction/stabilization under anesthesia. If stabilization is achieved, the patient is placed in a hip spica (abduction) cast for six weeks. Open surgical treatment is pursued if closed stabilization is unsuccessful.


Infants with DDH, whether treated or untreated, have a higher incidence of early-onset hip osteoarthritis in adulthood, but the incidence is lowest in those who receive early treatment.9,10,22,23,33 In cases of mild instability, the approach of watchful waiting with bimonthly examination for up to six weeks minimizes the rate of unnecessary treatment. Multiple studies have shown no difference in outcomes with watchful waiting for up to six weeks of life vs. immediate treatment.3,32,34

The arguments for early conservative treatment (e.g., splinting) are that surgical intervention is more likely to be required when cases are detected and treated after six months of age and that complication rates are higher with surgical treatment than with splinting.29 A flexion-abduction splint is usually worn for six to 12 weeks. The device is thought to help seat the femoral head deeper within the acetabulum, as well as to promote better coverage, growth, and development of the hip. In about 5% of cases, the hip joint remains unstable after several weeks of splinting.2


The most important adverse effect of DDH treatment is avascular necrosis of the femoral head. The major complication of avascular necrosis is early-onset osteoarthritis and the need for hip replacement surgery. Femoral nerve palsy, pressure ulcers, and musculotendinous contracture are additional risks of splinting and surgical treatment.2,21,32


Avascular necrosis is a risk of splinting and surgical intervention, and it occurs only in treated patients.23 It does not occur as part of the natural history of untreated DDH. The rate of avascular necrosis is unclear; studies report rates varying from 0% to 14% with splinting and from 5% to 60% with surgery.2 The rate seems to be lower, reported at 0% to 2%, when flexion-abduction splinting is instituted early in infancy.9,32,39 Rates of avascular necrosis increase with delayed diagnosis and surgical treatment.9,23


Because screening for DDH was widely implemented before research had been done to determine the benefits, it would now be difficult from ethical and practical standpoints to conduct studies that would definitively determine if screening improves outcomes. Because of the risk of avascular necrosis following treatment and the high likelihood of spontaneous resolution of mild forms of DDH, some researchers have questioned the utility of screening.21,22,28 There are no clinical studies to determine if abandoning screening is a viable approach, but a decision analysis showed that screening with physical examination, compared with no screening or universal ultrasonography screening, would result in fewer adults having osteoarthritis of the hip at 60 years of age.23

Although the benefits and risks of screening and treatment are unclear, physical examination screening of newborn hips remains the standard of care, and ethical barriers and medicolegal risks of not screening will likely keep the practice in place for the foreseeable future. Rather than answering the question of whether screening should be performed, ongoing research will likely focus on approaches to screening and management that will decrease the number of children unnecessarily treated for DDH without increasing morbidity from the condition.2,9,20,29

Data Sources: We searched PubMed (U.S. National Library of Medicine, National Institutes of Health) using the MeSH term congenital hip dislocation combined with epidemiology, screening, or treatment. We reviewed all pertinent articles from these queries. We reviewed reference lists from key articles. We used the AAFP-recommended resources for evidence-based continuing medical education and searched these resources/databases for hip dysplasia. We specifically used the Agency for Healthcare Research and Quality, U.S. Preventive Services Task Force, Canadian Task Force on Preventive Health Care, Cochrane database, and UpToDate. Search dates: March through November 2012, and May 2014.

The authors thank David Stewart, MD, Children's Bone and Spine Surgery, Las Vegas, Nev., for his generous contributions in supporting and reviewing this article.

This article represents the views of the authors and does not represent the views of the U.S. Air Force, the Defense Department, or the U.S. government.
